Spatial resampling with metallicity scatter

Demonstrates spatially_resample() with attr_modes={"metallicities": ("normal", sigma)} to scatter gas and stellar metallicities around their parent-particle values.

A CAMELS-IllustrisTNG galaxy is resampled by a factor of 10 under two modes — duplicated (default) and normal with a large fixed σ — and the resulting gas-mass maps and metallicity histograms are compared.

The "normal" mode with a large σ introduces visible scatter in the metallicity distribution while still preserving the global shape and the underlying mass–metallicity relation.

•
•

import matplotlib.pyplot as plt
import numpy as np
from matplotlib.gridspec import GridSpec
from unyt import Mpc

from synthesizer import TEST_DATA_DIR
from synthesizer.kernel_functions import Kernel
from synthesizer.load_data.load_camels import load_CAMELS_IllustrisTNG
from synthesizer.particle.galaxy import Galaxy

plt.rcParams["font.family"] = "DeJavu Serif"
plt.rcParams["font.serif"] = ["Times New Roman"]

# ---------------------------------------------------------------------------
# Load CAMELS test galaxy
# ---------------------------------------------------------------------------
galaxies = load_CAMELS_IllustrisTNG(
    TEST_DATA_DIR,
    snap_name="camels_snap.hdf5",
    group_name="camels_subhalo.hdf5",
    group_dir=TEST_DATA_DIR,
)
original = galaxies[0]

star_centre = original.stars.coordinates.mean(axis=0)
original.stars.centre = star_centre
original.gas.centre = star_centre

FACTOR = 10
FOV = 0.025  # Mpc
RESOLUTION = 0.0002  # Mpc
KERNEL = Kernel("cubic")
SIGMA_Z = 1.0  # large fixed sigma to make scatter visible

# ---------------------------------------------------------------------------
# Resample
# ---------------------------------------------------------------------------
g_dup = original.gas.spatially_resample(FACTOR, seed=42, kernel=KERNEL)
s_dup = original.stars.spatially_resample(FACTOR, seed=42, kernel=KERNEL)
g_dup.calculate_smoothing_lengths()
s_dup.calculate_smoothing_lengths()

g_norm = original.gas.spatially_resample(
    FACTOR,
    seed=42,
    kernel=KERNEL,
    attr_modes={"metallicities": ("normal", SIGMA_Z)},
)
s_norm = original.stars.spatially_resample(
    FACTOR,
    seed=42,
    kernel=KERNEL,
    attr_modes={"metallicities": ("normal", SIGMA_Z)},
)
g_norm.calculate_smoothing_lengths()
s_norm.calculate_smoothing_lengths()

gal_orig = original
gal_dup = Galaxy(
    name="dup",
    stars=s_dup,
    gas=g_dup,
    redshift=original.redshift,
    centre=star_centre,
)
gal_norm = Galaxy(
    name="norm",
    stars=s_norm,
    gas=g_norm,
    redshift=original.redshift,
    centre=star_centre,
)

# ---------------------------------------------------------------------------

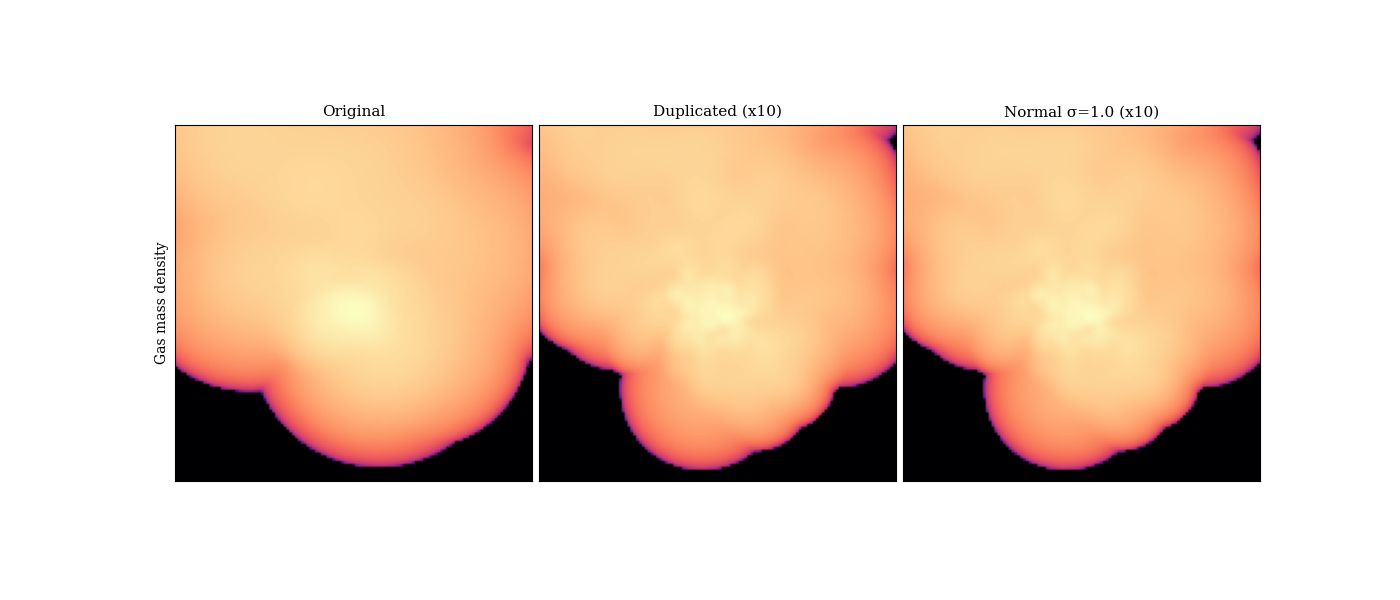

# Generate gas-mass smoothed images
# ---------------------------------------------------------------------------
img_kw = dict(
    resolution=RESOLUTION * Mpc,
    fov=FOV * Mpc,
    img_type="smoothed",
    kernel=KERNEL,
)


def _prep(im, floor=1e-10):
    arr = im.arr.copy() if hasattr(im, "arr") else np.asarray(im).copy()
    fv = float(im._fov[0]) if hasattr(im, "_fov") else FOV
    return np.maximum(arr, floor), fv


gas_mass_orig, fv = _prep(gal_orig.get_map_gas_mass(**img_kw))
gas_mass_dup, _ = _prep(gal_dup.get_map_gas_mass(**img_kw))
gas_mass_norm, _ = _prep(gal_norm.get_map_gas_mass(**img_kw))

# ---------------------------------------------------------------------------
# Plot
# ---------------------------------------------------------------------------
fig = plt.figure(figsize=(14, 6))
gs = GridSpec(1, 3, figure=fig, wspace=0.02)
ext = [-fv / 2, fv / 2, -fv / 2, fv / 2]

for col, (arr, title) in enumerate(
    [
        (gas_mass_orig, "Original"),
        (gas_mass_dup, f"Duplicated (x{FACTOR})"),
        (gas_mass_norm, f"Normal σ={SIGMA_Z} (x{FACTOR})"),
    ]
):
    ax = fig.add_subplot(gs[0, col])
    ax.imshow(
        arr,
        origin="lower",
        extent=ext,
        aspect="equal",
        norm="log",
        cmap="magma",
    )
    ax.set_title(title, fontsize=11)
    if col == 0:
        ax.set_ylabel("Gas mass density", fontsize=10)
    ax.set_xticks([])
    ax.set_yticks([])

# ---------------------------------------------------------------------------

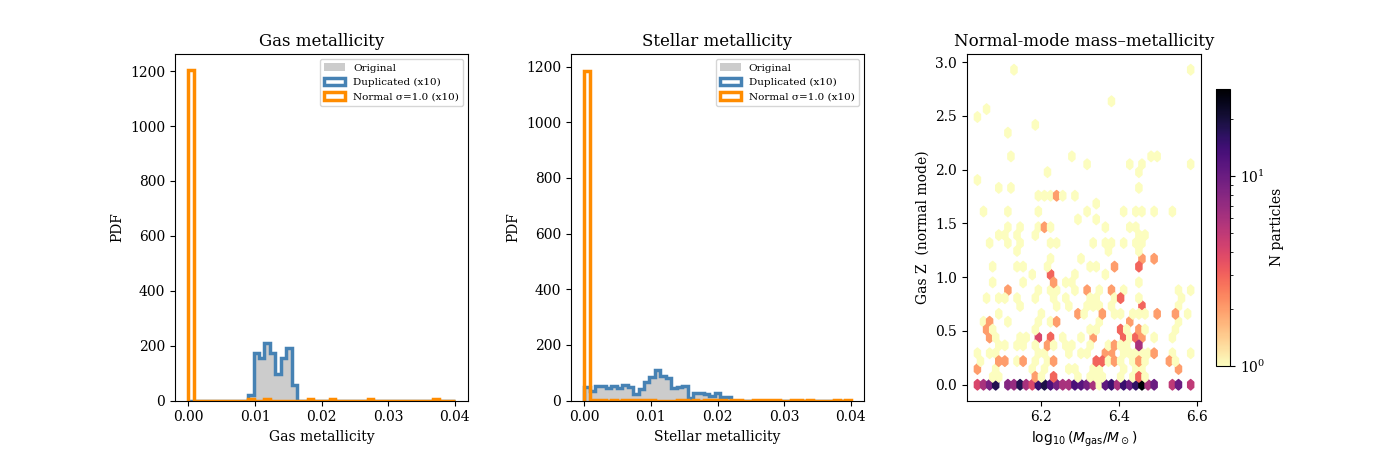

# Second figure: metallicity histograms + mass–Z hexbin
# ---------------------------------------------------------------------------
fig2, axes = plt.subplots(
    1, 3, figsize=(14, 4.5), gridspec_kw=dict(wspace=0.35)
)

z_bins = np.linspace(0, 0.04, 50)

# Gas metallicity
ax = axes[0]
ax.hist(
    original.gas.metallicities,
    bins=z_bins,
    color="grey",
    alpha=0.4,
    label="Original",
    density=True,
)
ax.hist(
    g_dup.metallicities,
    bins=z_bins,
    color="steelblue",
    histtype="step",
    lw=2.5,
    label=f"Duplicated (x{FACTOR})",
    density=True,
)
ax.hist(
    g_norm.metallicities,
    bins=z_bins,
    color="darkorange",
    histtype="step",
    lw=2.5,
    label=f"Normal σ={SIGMA_Z} (x{FACTOR})",
    density=True,
)
ax.set_xlabel("Gas metallicity")
ax.set_ylabel("PDF")
ax.set_title("Gas metallicity")
ax.legend(fontsize=7.5)

# Stellar metallicity
ax = axes[1]
ax.hist(
    original.stars.metallicities,
    bins=z_bins,
    color="grey",
    alpha=0.4,
    label="Original",
    density=True,
)
ax.hist(
    s_dup.metallicities,
    bins=z_bins,
    color="steelblue",
    histtype="step",
    lw=2.5,
    label=f"Duplicated (x{FACTOR})",
    density=True,
)
ax.hist(
    s_norm.metallicities,
    bins=z_bins,
    color="darkorange",
    histtype="step",
    lw=2.5,
    label=f"Normal σ={SIGMA_Z} (x{FACTOR})",
    density=True,
)
ax.set_xlabel("Stellar metallicity")
ax.set_ylabel("PDF")
ax.set_title("Stellar metallicity")
ax.legend(fontsize=7.5)

# Mass–metallicity hexbin for normal-mode gas
ax = axes[2]
h = ax.hexbin(
    np.log10(g_norm.masses.value.clip(1e-10)),
    g_norm.metallicities.clip(1e-6),
    gridsize=35,
    cmap="magma_r",
    mincnt=1,
    bins="log",
)
plt.colorbar(h, ax=ax, label="N particles", shrink=0.8)
ax.set_xlabel(r"$\log_{10}(M_\mathrm{gas} / M_\odot)$")
ax.set_ylabel("Gas Z  (normal mode)")
ax.set_title("Normal-mode mass–metallicity")

plt.show()
