Creating your own EmissionModel¶
To create your own EmissionModel all you need to do is define each indiviudal emission type and relate them. This operation will define a tree-like structure, where each model links to at least one other model.
In the sections below we will detail how to define each different type of emission operation, but there are a few arguments needed by an EmissionModel regardless of the operation:
A label which identifies the model. This is given by passing a string to the
labelargument. These must be unique within a single emission model “tree”.An emitter to act on. This is given by passing a string to the
emitterargument. Currently the possible emitters are:"stellar","blackhole", and"galaxy".
Before demonstrating anything we first need to import the classes we’ll need and set up a Grid (described here).
[1]:
from unyt import cm, dimensionless, kelvin, km, s
from synthesizer.emission_models import EmissionModel
from synthesizer.emission_models.attenuation import PowerLaw
from synthesizer.emission_models.dust.emission import Blackbody
from synthesizer.grid import Grid
# Get the grid which we'll need for extraction
grid_dir = "../../../tests/test_grid"
grid_name = "test_grid"
grid = Grid(grid_name, grid_dir=grid_dir)
Emitters¶
The emitter on a model defines:
Where any model independant attributes should be extracted from (e.g. ages and metallicites needed for stellar extractions).
Where the resulting spectra/lines will be stored once generated.
Where any emitter attributes should be extracted from (e.g. optical depths
tau_v, escape fractionsfesc, etc.).
"stellar" will cause the model to use a Stars object, "blackhole" will cause the model to use a BlackHole/s object, while "galaxy" will cause the model to use a Galaxy object. This mechanism is all performed behind the scenes, you should never have to interact directly with any of this beyond setting the emitter string on a model and calling the emitter’s get_spectra/get_lines methods.
As well as the base EmissionModel classes there are 3 specialised model classes: StellarEmissionModel, BlackHoleEmissionModel, and GalaxyEmissionModel. These specialised classes are identical to the base EmissionModel class but automatically set the emitter argument to "stellar", "blackhole", and "galaxy" respectively.
We’ll cover the specifics of different operations below, but this means the following fake models:
[2]:
transmitted = EmissionModel(
"transmitted",
grid=grid,
extract="transmitted",
fesc=0.3,
emitter="stellar",
)
nlr = EmissionModel(
"nlr",
grid=grid,
extract="nebular",
fesc=0.3,
emitter="blackhole",
)
total = EmissionModel(
"total",
combine=(transmitted, nlr),
emitter="galaxy",
)
are equivalent to:
[3]:
from synthesizer.emission_models import (
BlackHoleEmissionModel,
GalaxyEmissionModel,
StellarEmissionModel,
)
transmitted = StellarEmissionModel(
"transmitted",
grid=grid,
extract="transmitted",
fesc=0.3,
)
nlr = BlackHoleEmissionModel(
"nlr",
grid=grid,
extract="nebular",
fesc=0.3,
)
total = GalaxyEmissionModel(
"total",
combine=(transmitted, nlr),
)
In the rest of this notebook we’ll use these specialised classes rather than the base EmissionModel.
Defining an extraction¶
To define an extraction we simply need to pass a Grid to extract from and a key to extract.
[4]:
transmitted = StellarEmissionModel(
"transmitted",
grid=grid,
extract="transmitted",
)
print(transmitted)
|===== EmissionModel: transmitted ====|
|-------------------------------------|
| TRANSMITTED (stellar) |
|-------------------------------------|
|Extraction model: |
| Grid: test_grid |
| Extract key: transmitted |
| Use velocity shift: False |
| Save emission: True |
|=====================================|
Defining a combination¶
To define a combination we simply pass the models we want combined to the combine keyword (along with a label).
[5]:
# Define models to combine
linecont = StellarEmissionModel(
"linecont",
grid=grid,
extract="linecont",
mask_attr="log10ages",
mask_thresh=7 * dimensionless,
mask_op="<",
fesc=0.7,
)
nebular_cont = StellarEmissionModel(
"nebular_continuum",
grid=grid,
extract="nebular_continuum",
mask_attr="log10ages",
mask_thresh=7 * dimensionless,
mask_op="<",
)
# Define the combined model
nebular = StellarEmissionModel("nebular", combine=(linecont, nebular_cont))
print(nebular)
|================ EmissionModel: nebular ===============|
|-------------------------------------------------------|
| NEBULAR_CONTINUUM (stellar) |
|-------------------------------------------------------|
|Extraction model: |
| Grid: test_grid |
| Extract key: nebular_continuum |
| Use velocity shift: False |
| Save emission: True |
| Masks: |
| - log10ages < 7 dimensionless |
|-------------------------------------------------------|
| LINECONT (stellar) |
|-------------------------------------------------------|
|Extraction model: |
| Grid: test_grid |
| Extract key: linecont |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - fesc: 0.7 |
| Masks: |
| - log10ages < 7 dimensionless |
|-------------------------------------------------------|
| NEBULAR (stellar) |
|-------------------------------------------------------|
|Combination model: |
| Combine models: linecont, nebular_continuum |
| Save emission: True |
|=======================================================|
Defining a transformation¶
To define a transformation emission model we need a transformer and the model to apply the transformer to (once again along with a label). Here we will create an attenuation transformaion where the transformer is an AttenuationLaw object, see the attenuation docs for more information on these objects.
[6]:
attenuated = StellarEmissionModel(
"attenuated",
dust_curve=PowerLaw(slope=-1),
apply_to=nebular,
)
print(attenuated)
|===================================== EmissionModel: attenuated =====================================|
|-----------------------------------------------------------------------------------------------------|
| NEBULAR_CONTINUUM (stellar) |
|-----------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid |
| Extract key: nebular_continuum |
| Use velocity shift: False |
| Save emission: True |
| Masks: |
| - log10ages < 7 dimensionless |
|-----------------------------------------------------------------------------------------------------|
| LINECONT (stellar) |
|-----------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid |
| Extract key: linecont |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - fesc: 0.7 |
| Masks: |
| - log10ages < 7 dimensionless |
|-----------------------------------------------------------------------------------------------------|
| NEBULAR (stellar) |
|-----------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: linecont, nebular_continuum |
| Save emission: True |
|-----------------------------------------------------------------------------------------------------|
| ATTENUATED (stellar) |
|-----------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.dust_attenuation.PowerLaw'> |
| Apply to: nebular |
| Save emission: True |
|=====================================================================================================|
Some operations will require certain properties are defined on an emitter. These will have some expected name, e.g. tau_v or fesc, however, you are free to attach any properties you like to an emitter and use them in your models. In this case a dust attenuation transformer requires an optical depth to be defined on the emitter (by default this will look for the tau_v attribute on the emitter).
To signpost that you want to use a special property you can pass a string as the override on the model. This will cause the spectra generator to look for an attribute on the emitter with this name. Below we will redirect the optical depth from tau_v to ism_tau_v as if we had different optical depths certain environments around the stars.
[7]:
attenuated = StellarEmissionModel(
"attenuated",
dust_curve=PowerLaw(slope=-1),
apply_to=nebular,
tau_v="ism_tau_v",
)
print(attenuated)
|===================================== EmissionModel: attenuated =====================================|
|-----------------------------------------------------------------------------------------------------|
| NEBULAR_CONTINUUM (stellar) |
|-----------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid |
| Extract key: nebular_continuum |
| Use velocity shift: False |
| Save emission: True |
| Masks: |
| - log10ages < 7 dimensionless |
|-----------------------------------------------------------------------------------------------------|
| LINECONT (stellar) |
|-----------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid |
| Extract key: linecont |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - fesc: 0.7 |
| Masks: |
| - log10ages < 7 dimensionless |
|-----------------------------------------------------------------------------------------------------|
| NEBULAR (stellar) |
|-----------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: linecont, nebular_continuum |
| Save emission: True |
|-----------------------------------------------------------------------------------------------------|
| ATTENUATED (stellar) |
|-----------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.dust_attenuation.PowerLaw'> |
| Apply to: nebular |
| Save emission: True |
| Fixed parameters: |
| - tau_v: ism_tau_v |
|=====================================================================================================|
Defining a generation¶
To define a generation model we only need to provide the generator class (i.e. a Blackbody).
[8]:
from synthesizer.emission_models.dust.emission import Blackbody
bb_emission = StellarEmissionModel(
"blackbody_emission",
generator=Blackbody(50 * kelvin),
)
print(bb_emission)
|========================================= EmissionModel: blackbody_emission =========================================|
|---------------------------------------------------------------------------------------------------------------------|
| BLACKBODY_EMISSION (stellar) |
|---------------------------------------------------------------------------------------------------------------------|
|Generation model: |
| Emission generation model: <synthesizer.emission_models.dust.emission.Blackbody object at 0x7f7845519a80> |
| Save emission: True |
|=====================================================================================================================|
If we want to scale the generated emission by another emission model we can pass that as the lum_intrinsic_model.
[9]:
scaled_bb_emission = StellarEmissionModel(
"blackbody_emission",
generator=Blackbody(50 * kelvin),
lum_intrinsic_model=transmitted,
)
print(scaled_bb_emission)
|========================================= EmissionModel: blackbody_emission =========================================|
|---------------------------------------------------------------------------------------------------------------------|
| TRANSMITTED (stellar) |
|---------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid |
| Extract key: transmitted |
| Use velocity shift: False |
| Save emission: True |
|---------------------------------------------------------------------------------------------------------------------|
| BLACKBODY_EMISSION (stellar) |
|---------------------------------------------------------------------------------------------------------------------|
|Generation model: |
| Emission generation model: <synthesizer.emission_models.dust.emission.Blackbody object at 0x7f77f9e377c0> |
| Scale by: transmitted |
| Save emission: True |
|=====================================================================================================================|
For the special case of energy balance dust emission you can pass both the intrinsic and attenuated models to scale by the emission reprocessed by dust.
[10]:
dust_emission = GalaxyEmissionModel(
"blackbody_emission",
generator=Blackbody(50 * kelvin),
lum_intrinsic_model=transmitted,
lum_attenuated_model=attenuated,
)
print(dust_emission)
|========================================= EmissionModel: blackbody_emission =========================================|
|---------------------------------------------------------------------------------------------------------------------|
| NEBULAR_CONTINUUM (stellar) |
|---------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid |
| Extract key: nebular_continuum |
| Use velocity shift: False |
| Save emission: True |
| Masks: |
| - log10ages < 7 dimensionless |
|---------------------------------------------------------------------------------------------------------------------|
| LINECONT (stellar) |
|---------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid |
| Extract key: linecont |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - fesc: 0.7 |
| Masks: |
| - log10ages < 7 dimensionless |
|---------------------------------------------------------------------------------------------------------------------|
| TRANSMITTED (stellar) |
|---------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid |
| Extract key: transmitted |
| Use velocity shift: False |
| Save emission: True |
|---------------------------------------------------------------------------------------------------------------------|
| NEBULAR (stellar) |
|---------------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: linecont, nebular_continuum |
| Save emission: True |
|---------------------------------------------------------------------------------------------------------------------|
| ATTENUATED (stellar) |
|---------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.dust_attenuation.PowerLaw'> |
| Apply to: nebular |
| Save emission: True |
| Fixed parameters: |
| - tau_v: ism_tau_v |
|---------------------------------------------------------------------------------------------------------------------|
| BLACKBODY_EMISSION (galaxy) |
|---------------------------------------------------------------------------------------------------------------------|
|Generation model: |
| Emission generation model: <synthesizer.emission_models.dust.emission.Blackbody object at 0x7f77f9e36bf0> |
| Dust luminosity: transmitted - attenuated |
| Save emission: True |
|=====================================================================================================================|
Including a mask¶
A mask can be included in any step by passing mask_attr, mask_thresh, and mask_op.
[11]:
masked_transmitted = StellarEmissionModel(
"masked_transmitted",
grid=grid,
extract="transmitted",
fesc="fesc",
mask_attr="log10ages",
mask_thresh=7 * dimensionless,
mask_op="<",
)
We can also define multiple masks on a single step. To add more masks, use the add_mask method, as demonstrated with the modifying models docs. These will be combined with a boolean and operation at the point of spectra generation.
[12]:
masked_transmitted.add_mask("metallicities", "<", 0.01 * dimensionless)
masked_transmitted.add_mask("log10ages", "<", 6 * dimensionless)
print(masked_transmitted)
|======== EmissionModel: masked_transmitted ========|
|---------------------------------------------------|
| MASKED_TRANSMITTED (stellar) |
|---------------------------------------------------|
|Extraction model: |
| Grid: test_grid |
| Extract key: transmitted |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - fesc: fesc |
| Masks: |
| - log10ages < 7 dimensionless |
| - metallicities < 0.01 dimensionless |
| - log10ages < 6 dimensionless |
|===================================================|
Fixing parameters¶
When an emission model is used in a get_spectra method, any parameters the model does not define will be extracted from the emitter. If you would like to set any of these to fixed values you can pass these to a model at instantiation. They will be stored on the model in a dictionary called fixed_parameters.
For demonstration purposes, below we create an AGN NLR emission model with fixed NLR parameters. This can also be done with a setter after instantiation (see the model modification docs).
[14]:
# Get the NLR and BLR grids
nlr_grid = Grid("test_grid_agn-nlr", grid_dir="../../../tests/test_grid")
nlr = BlackHoleEmissionModel(
label="nlr",
extract="nebular",
grid=nlr_grid,
fesc=0.1, # covering fraction
ionisation_parameter_nlr=0.01,
hydrogen_density_nlr=1e4 / cm**3,
covering_fraction_nlr=0.1,
velocity_dispersion_nlr=500 * km / s,
)
print(nlr)
|================= EmissionModel: nlr =================|
|------------------------------------------------------|
| NLR (blackhole) |
|------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-nlr |
| Extract key: nebular |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - fesc: 0.1 |
| - ionisation_parameter_nlr: 0.01 |
| - hydrogen_density_nlr: 10000.0 cm**(-3) |
| - covering_fraction_nlr: 0.1 |
| - velocity_dispersion_nlr: 500 km/s |
|======================================================|
Using post processing functions¶
You may want to apply some post processing to your resulting spectra that isn’t offered by synthesizer. In these cases you can pass a list of “post processing functions” to the EmissionModel. These functions will be called in the order they are passed, after all spectra have been generated.
These post processing functions must take the following arguments:
A dictionary of spectra / lines, where the dictionary will be filled by key-value pairs of emission model labels and the spectra / lines they produce (
Sed/LineCollection){<model.label>: <spectra / lines>}.A dictionary of galaxy / component objects, where the dictionary will be
{"stellar": Stars, "blackhole": BlackHoles, "galaxy": Galaxy}.An
EmissionModel.
Each post processing function should also return the dictionary of spectra / lines with the modified values.
When get_spectra is called, and all spectra have been generated, any post processing functions will be called with these arguments (in the order listed above).
Below we define a fake function to perform some arbitrary mass scaling of the spectra.
[15]:
def scale_by_mass(emission, emitters, model):
"""
Scale the emission by mass.
Args:
emission (dict): A dictionary of emissions.
emitters (dict): A dictionary of emitters.
model (EmissionModel): The model defining the emissions.
"""
# Loop over emissions
for key, value in emission.values():
# Get model
this_model = model[key]
# Get the emitter
emitter = emitters[this_model.emitter]
# Scale the emission
value *= emitter.masses
return emission
nebular = StellarEmissionModel(
"nebular",
combine=(linecont, nebular_cont),
related_models=(transmitted),
post_processing=(scale_by_mass,),
)
Saving or not saving the emission¶
By default all emissions produced by a model will be attached to an emitter after generation. If you would like to instead discard a spectra (but still have it generated for making other spectra) you can pass save=False to the emission model at instantiation.
[16]:
throw_away = StellarEmissionModel(
"throw_away",
combine=(linecont, nebular_cont),
save=False,
)
Putting it all together¶
In the example below we demonstrate how to construct a complex model piece by piece. This will construct the TotalEmission model with the Charlot&Fall+2000 like attenuation operation explicitly.
Here we’ll use the base EmissionModel class to explictly show the setting of the emitter argument. Notice how we associate the dust emission and total emission on the galaxy rather than the stellar component.
[17]:
# Define the extractions
transmitted = EmissionModel(
"transmitted",
grid=grid,
extract="transmitted",
fesc=0.3,
emitter="stellar",
)
escaped = EmissionModel(
"escaped", grid=grid, extract="transmitted", fesc=0.7, emitter="stellar"
)
linecont = EmissionModel(
"linecont",
grid=grid,
extract="linecont",
mask_attr="log10ages",
mask_thresh=7 * dimensionless,
mask_op="<",
fesc=0.7,
emitter="stellar",
save=False,
)
nebular_cont = EmissionModel(
"nebular_continuum",
grid=grid,
extract="nebular_continuum",
mask_attr="log10ages",
mask_thresh=7 * dimensionless,
mask_op="<",
emitter="stellar",
save=False,
)
# Combine the extractions
nebular = EmissionModel(
"nebular", combine=(linecont, nebular_cont), emitter="stellar"
)
reprocessed = EmissionModel(
"reprocessed", combine=(nebular, transmitted), emitter="stellar"
)
# Apply the young and old dust attenuation
young_attenuated = EmissionModel(
"young_attenuated",
dust_curve=PowerLaw,
apply_to=reprocessed,
tau_v=("tau_v", 0.67),
mask_attr="log10ages",
mask_thresh=7 * dimensionless,
mask_op="<",
emitter="stellar",
save=False,
)
old_attenuated = EmissionModel(
"old_attenuated",
dust_curve=PowerLaw,
apply_to=reprocessed,
tau_v="tau_v",
mask_attr="log10ages",
mask_thresh=7 * dimensionless,
mask_op=">=",
emitter="stellar",
save=False,
)
# And combine them into a single attenuated spectra
attenuated = EmissionModel(
"attenuated", combine=(young_attenuated, old_attenuated), emitter="stellar"
)
emergent = EmissionModel(
"emergent", combine=(attenuated, escaped), emitter="stellar"
)
# Create a dust emission model
dust_emission = EmissionModel(
"dust_emission",
generator=Blackbody(temperature=100 * kelvin),
lum_intrinsic_model=reprocessed,
lum_attenuated_model=emergent["attenuated"],
emitter="galaxy",
)
# And bring everything together into the total emission
total = EmissionModel(
"total", combine=(emergent, dust_emission), emitter="galaxy"
)

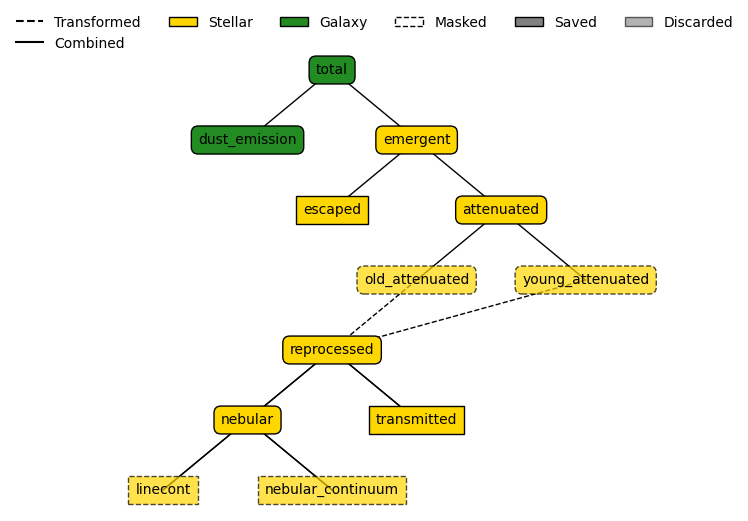

total.plot_emission_tree()
print(total)
|================================================ EmissionModel: total ===============================================|
|---------------------------------------------------------------------------------------------------------------------|
| TRANSMITTED (stellar) |
|---------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid |
| Extract key: transmitted |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - fesc: 0.3 |
|---------------------------------------------------------------------------------------------------------------------|
| LINECONT (stellar) |
|---------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid |
| Extract key: linecont |
| Use velocity shift: False |
| Save emission: False |
| Fixed parameters: |
| - fesc: 0.7 |
| Masks: |
| - log10ages < 7 dimensionless |
|---------------------------------------------------------------------------------------------------------------------|
| NEBULAR_CONTINUUM (stellar) |
|---------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid |
| Extract key: nebular_continuum |
| Use velocity shift: False |
| Save emission: False |
| Masks: |
| - log10ages < 7 dimensionless |
|---------------------------------------------------------------------------------------------------------------------|
| ESCAPED (stellar) |
|---------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid |
| Extract key: transmitted |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - fesc: 0.7 |
|---------------------------------------------------------------------------------------------------------------------|
| NEBULAR (stellar) |
|---------------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: linecont, nebular_continuum |
| Save emission: True |
|---------------------------------------------------------------------------------------------------------------------|
| REPROCESSED (stellar) |
|---------------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: nebular, transmitted |
| Save emission: True |
|---------------------------------------------------------------------------------------------------------------------|
| OLD_ATTENUATED (stellar) |
|---------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'abc.ABCMeta'> |
| Apply to: reprocessed |
| Save emission: False |
| Fixed parameters: |
| - tau_v: tau_v |
| Masks: |
| - log10ages >= 7 dimensionless |
|---------------------------------------------------------------------------------------------------------------------|
| YOUNG_ATTENUATED (stellar) |
|---------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'abc.ABCMeta'> |
| Apply to: reprocessed |
| Save emission: False |
| Fixed parameters: |
| - tau_v: ('tau_v', 0.67) |
| Masks: |
| - log10ages < 7 dimensionless |
|---------------------------------------------------------------------------------------------------------------------|
| ATTENUATED (stellar) |
|---------------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: young_attenuated, old_attenuated |
| Save emission: True |
|---------------------------------------------------------------------------------------------------------------------|
| DUST_EMISSION (galaxy) |
|---------------------------------------------------------------------------------------------------------------------|
|Generation model: |
| Emission generation model: <synthesizer.emission_models.dust.emission.Blackbody object at 0x7f77f9ca77c0> |
| Dust luminosity: reprocessed - attenuated |
| Save emission: True |
|---------------------------------------------------------------------------------------------------------------------|
| EMERGENT (stellar) |
|---------------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: attenuated, escaped |
| Save emission: True |
|---------------------------------------------------------------------------------------------------------------------|
| TOTAL (galaxy) |
|---------------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: emergent, dust_emission |
| Save emission: True |
|=====================================================================================================================|
