AGN Emission Models¶
We define a set of premade models, including a complex UnifiedAGN model to calculate and combine emission from an AGN’s disc, Narrow Line Region (NLR), Broad Line Region (BLR), and torus.
You are, of course, free to construct whatever emission model you want using the preexisting AGN grids
As with the stellar models, before we define any AGN models we need the grids to use with them. For AGN models there are currently two grids, one for the NLR and one for the BLR
[1]:
from unyt import kelvin
from synthesizer import Grid
from synthesizer.emission_models import Blackbody, Greybody
from synthesizer.emission_models.attenuation import PowerLaw
# Get the NLR and BLR grids
nlr_grid = Grid("test_grid_agn-nlr")
blr_grid = Grid("test_grid_agn-blr")
When defining all of the following models we will explicitly provide covering fractions for each component, however, these can be freely omitted and instead attached to the BlackHole/s explicitly. This is done to allow for the possibility of having a single covering fraction for all components, or for the covering fraction to be defined on a per black hole basis.
NLRIncidentEmission & BLRIncidentEmission¶
The incident NLR emission is the pure disc emission incident onto the NLR. Similarly, the incident BLR emission is the pure disc emission incident onto the BLR.
A NLR / BLR incident model defines the extraction of the "incident" NLR / BLR spectra from an AGN grid.
[2]:
from synthesizer.emission_models import (
BLRIncidentEmission,
NLRIncidentEmission,
)
nlr_incident = NLRIncidentEmission(grid=nlr_grid)
print(nlr_incident)
blr_incident = BLRIncidentEmission(grid=blr_grid)
print(blr_incident)
|==== EmissionModel: nlr_incident ====|
|-------------------------------------|
| NLR_INCIDENT (blackhole) |
|-------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-nlr |
| Extract key: incident |
| Use velocity shift: False |
| Save emission: True |
|=====================================|
|==== EmissionModel: blr_incident ====|
|-------------------------------------|
| BLR_INCIDENT (blackhole) |
|-------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-blr |
| Extract key: incident |
| Use velocity shift: False |
| Save emission: True |
|=====================================|
NLRTransmittedEmission & BLRTransmittedEmission¶
The transmitted NLR emission is the incident NLR emission which is transmitted through the NLR. Similarly, a transmitted BLR emission is the incident BLR emission which is transmitted through the BLR.
A NLR / BLR transmitted model defines the extraction of the "transmitted" NLR / BLR spectra from an AGN grid, including a covering fraction (escape fraction) defining how much of the disc emission is transmitted through the NLR / BLR.
[3]:
from synthesizer.emission_models import (
BLRTransmittedEmission,
NLRTransmittedEmission,
)
nlr_transmitted = NLRTransmittedEmission(grid=nlr_grid, covering_fraction=0.1)
print(nlr_transmitted)
blr_transmitted = BLRTransmittedEmission(grid=blr_grid, covering_fraction=0.1)
print(blr_transmitted)
|====================================== EmissionModel: nlr_transmitted ======================================|
|------------------------------------------------------------------------------------------------------------|
| FULL_NLR_TRANSMITTED (blackhole) |
|------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-nlr |
| Extract key: transmitted |
| Use velocity shift: False |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------|
| NLR_TRANSMITTED (blackhole) |
|------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: full_nlr_transmitted |
| Save emission: True |
| Fixed parameters: |
| - fesc: 0.1 |
|============================================================================================================|
|====================================== EmissionModel: blr_transmitted ======================================|
|------------------------------------------------------------------------------------------------------------|
| FULL_BLR_TRANSMITTED (blackhole) |
|------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-blr |
| Extract key: transmitted |
| Use velocity shift: False |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------|
| BLR_TRANSMITTED (blackhole) |
|------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: full_blr_transmitted |
| Save emission: True |
| Fixed parameters: |
| - fesc: 0.1 |
|============================================================================================================|
NLREmission & BLREmission¶
The NLR emission is the emission coming directly from the NLR. Similarly, the BLR emission is the emission coming directly from the BLR.
A NLR / BLR model defines the extraction of the "nebular" NLR / BLR spectra from an AGN grid.
[4]:
from synthesizer.emission_models import NLREmission
nlr = NLREmission(grid=nlr_grid)
print(nlr)
blr = NLREmission(grid=blr_grid)
print(blr)
|========= EmissionModel: nlr ========|
|-------------------------------------|
| NLR (blackhole) |
|-------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-nlr |
| Extract key: nebular |
| Use velocity shift: False |
| Save emission: True |
|=====================================|
|========= EmissionModel: nlr ========|
|-------------------------------------|
| NLR (blackhole) |
|-------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-blr |
| Extract key: nebular |
| Use velocity shift: False |
| Save emission: True |
|=====================================|
DiscIncidentEmission¶
The disc incident emission is the emission directly from the disc incident onto the NLR and BLR. A disc incident model defines the extraction of the "incident" NLR spectra from an AGN grid.
Ignoring any geometry considerations, DiscIncidentEmission, NLRIncidentEmission, and BLRIncidentEmission are all equivalent models (we consider the geometry in the UnifiedAGN model).
[5]:
from synthesizer.emission_models import DiscIncidentEmission
disc_incident = DiscIncidentEmission(grid=nlr_grid)
print(disc_incident)
|==== EmissionModel: disc_incident ===|
|-------------------------------------|
| DISC_INCIDENT (blackhole) |
|-------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-nlr |
| Extract key: incident |
| Use velocity shift: False |
| Save emission: True |
|=====================================|
DiscTransmittedEmission¶
The disc transmitted emission is the disc emission transmitted through both the NLR and BLR. A disc transmitted model defines the combination of NLRTransmittedEmission and BLRTransmittedEmission, in the presence of a covering fraction (escape fraction), for each region.
[6]:
from synthesizer.emission_models import DiscTransmittedEmission
disc_transmitted = DiscTransmittedEmission(
nlr_grid=nlr_grid,
blr_grid=blr_grid,
covering_fraction_nlr=0.1,
covering_fraction_blr=0.2,
)
print(disc_transmitted)
disc_transmitted.plot_emission_tree()
|===================================== EmissionModel: disc_transmitted ======================================|
|------------------------------------------------------------------------------------------------------------|
| FULL_NLR_TRANSMITTED (blackhole) |
|------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-nlr |
| Extract key: transmitted |
| Use velocity shift: False |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------|
| FULL_BLR_TRANSMITTED (blackhole) |
|------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-blr |
| Extract key: transmitted |
| Use velocity shift: False |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------|
| NLR_TRANSMITTED (blackhole) |
|------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: full_nlr_transmitted |
| Save emission: True |
| Fixed parameters: |
| - fesc: 0.1 |
|------------------------------------------------------------------------------------------------------------|
| BLR_TRANSMITTED (blackhole) |
|------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: full_blr_transmitted |
| Save emission: True |
| Fixed parameters: |
| - fesc: 0.2 |
|------------------------------------------------------------------------------------------------------------|
| DISC_TRANSMITTED (blackhole) |
|------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: nlr_transmitted, blr_transmitted |
| Save emission: True |
|============================================================================================================|
[6]:
(<Figure size 600x600 with 1 Axes>, <Axes: >)
DiscEscapedEmission¶
The disc escaped emission is the disc incident emission not transmitted through the NLR or BLR. A disc escaped model defines the extraction of the "incident" NLR spectra from an AGN grid, with fesc=1 - covering_fraction_nlr - covering_fraction_blr.
[7]:
from synthesizer.emission_models import DiscEscapedEmission
disc_escaped = DiscEscapedEmission(
grid=nlr_grid, covering_fraction_nlr=0.1, covering_fraction_blr=0.2
)
print(disc_escaped)
|======================================= EmissionModel: disc_escaped ========================================|
|------------------------------------------------------------------------------------------------------------|
| DISC_INCIDENT (blackhole) |
|------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-nlr |
| Extract key: incident |
| Use velocity shift: False |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------|
| DISC_ESCAPED (blackhole) |
|------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.EscapingFraction'> |
| Apply to: disc_incident |
| Save emission: True |
| Fixed parameters: |
| - covering_fraction_nlr: 0.1 |
| - covering_fraction_blr: 0.2 |
|============================================================================================================|
DiscEmission¶
The disc emission is the combined emission from the disc including both the emission transmitted through the line regions and the escaping disc emission. A disc model defines the combination of DiscTransmittedEmission and DiscEscapedEmission.
[8]:
from synthesizer.emission_models import DiscEmission
disc = DiscEmission(
nlr_grid=nlr_grid,
blr_grid=blr_grid,
covering_fraction_nlr=0.1,
covering_fraction_blr=0.2,
)
print(disc)
disc.plot_emission_tree()
|=========================================== EmissionModel: disc ============================================|
|------------------------------------------------------------------------------------------------------------|
| DISC_INCIDENT (blackhole) |
|------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-nlr |
| Extract key: incident |
| Use velocity shift: False |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------|
| FULL_BLR_TRANSMITTED (blackhole) |
|------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-blr |
| Extract key: transmitted |
| Use velocity shift: False |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------|
| FULL_NLR_TRANSMITTED (blackhole) |
|------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-nlr |
| Extract key: transmitted |
| Use velocity shift: False |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------|
| DISC_ESCAPED (blackhole) |
|------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.EscapingFraction'> |
| Apply to: disc_incident |
| Save emission: True |
| Fixed parameters: |
| - covering_fraction_nlr: 0.1 |
| - covering_fraction_blr: 0.2 |
|------------------------------------------------------------------------------------------------------------|
| BLR_TRANSMITTED (blackhole) |
|------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: full_blr_transmitted |
| Save emission: True |
| Fixed parameters: |
| - fesc: 0.2 |
|------------------------------------------------------------------------------------------------------------|
| NLR_TRANSMITTED (blackhole) |
|------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: full_nlr_transmitted |
| Save emission: True |
| Fixed parameters: |
| - fesc: 0.1 |
|------------------------------------------------------------------------------------------------------------|
| DISC_TRANSMITTED (blackhole) |
|------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: nlr_transmitted, blr_transmitted |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------|
| DISC (blackhole) |
|------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: disc_transmitted, disc_escaped |
| Save emission: True |
|============================================================================================================|
[8]:
(<Figure size 600x600 with 1 Axes>, <Axes: >)
TorusEmission¶
The torus emission is the reprocessed emission from the disc incident on the torus. A torus model defines the generation of a spectra scaled by the DiscIncidentEmission, which can either be passed directly, or a grid must be passed and it will be generated.
[9]:
from synthesizer.emission_models import TorusEmission
torus = TorusEmission(
torus_emission_model=Blackbody(1000 * kelvin), disc_incident=disc_incident
)
print(torus)
|================================== EmissionModel: torus ==================================|
|------------------------------------------------------------------------------------------|
| DISC_INCIDENT (blackhole) |
|------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-nlr |
| Extract key: incident |
| Use velocity shift: False |
| Save emission: True |
|------------------------------------------------------------------------------------------|
| TORUS (blackhole) |
|------------------------------------------------------------------------------------------|
|Generation model: |
| Emission generation model: Blackbody(scaler=disc_incident, temperature=1000 K) |
| Scaler model: disc_incident |
| Save emission: True |
| Scaling by: |
| - torus_fraction |
|==========================================================================================|
AGNIntrinsicEmission¶
The AGN intrinsic emission is the total emission from an AGN, including the emission from the narrow and broad line regions, disc, and torus. An AGN intrinsic model defines the combination of DiscEmission, NLREmission, BLREmission, and TorusEmission.
[10]:
from synthesizer.emission_models import AGNIntrinsicEmission
agn_intrinsic = AGNIntrinsicEmission(
nlr_grid=nlr_grid,
blr_grid=blr_grid,
torus_emission_model=Blackbody(1000 * kelvin),
covering_fraction_nlr=0.1,
covering_fraction_blr=0.2,
)
print(agn_intrinsic)
agn_intrinsic.plot_emission_tree()
|========================================= EmissionModel: intrinsic =========================================|
|------------------------------------------------------------------------------------------------------------|
| FULL_BLR_TRANSMITTED (blackhole) |
|------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-blr |
| Extract key: transmitted |
| Use velocity shift: False |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------|
| FULL_NLR_TRANSMITTED (blackhole) |
|------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-nlr |
| Extract key: transmitted |
| Use velocity shift: False |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------|
| DISC_INCIDENT (blackhole) |
|------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-nlr |
| Extract key: incident |
| Use velocity shift: False |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------|
| BLR_TRANSMITTED (blackhole) |
|------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: full_blr_transmitted |
| Save emission: True |
| Fixed parameters: |
| - fesc: 0.2 |
|------------------------------------------------------------------------------------------------------------|
| NLR_TRANSMITTED (blackhole) |
|------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: full_nlr_transmitted |
| Save emission: True |
| Fixed parameters: |
| - fesc: 0.1 |
|------------------------------------------------------------------------------------------------------------|
| DISC_TRANSMITTED (blackhole) |
|------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: nlr_transmitted, blr_transmitted |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------|
| DISC_ESCAPED (blackhole) |
|------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.EscapingFraction'> |
| Apply to: disc_incident |
| Save emission: True |
| Fixed parameters: |
| - covering_fraction_nlr: 0.1 |
| - covering_fraction_blr: 0.2 |
|------------------------------------------------------------------------------------------------------------|
| DISC (blackhole) |
|------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: disc_transmitted, disc_escaped |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------|
| TORUS (blackhole) |
|------------------------------------------------------------------------------------------------------------|
|Generation model: |
| Emission generation model: Blackbody(scaler=disc_incident, temperature=1000 K) |
| Scaler model: disc_incident |
| Save emission: True |
| Scaling by: |
| - torus_fraction |
|------------------------------------------------------------------------------------------------------------|
| INTRINSIC (blackhole) |
|------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: disc, torus |
| Save emission: True |
|============================================================================================================|
[10]:
(<Figure size 600x600 with 1 Axes>, <Axes: >)
UnifiedAGN¶
The UnifiedAGN model is similar to the AGNIntrinsicEmission model, but folds in a lot of extra considerations about the relative geometry of the AGN, both internally and with respect to the observer. UnifiedAGN introduces several geometric properties:
inclination (\(\theta\))¶
The inclination (or viewing angle) of the disc relative to the observer.
\(\theta = 0\): face-on
\(\theta = \pi/2\): edge-on
When using the QSOSED or RELQSO disc models, the inclination also affects the incident spectrum.
theta_torus (\(\Theta_{\rm torus}\))¶
The torus opening angle \(\Theta_{\rm torus}\) determines when the disc and BLR emission are obscured along with the fraction of the disc light that is reprocessed.
The disc and BLR are obscured when \(\theta > 90^\circ - \Theta_{\rm torus}\)
The torus reprocesses a fraction \(2\Theta_{\rm torus} / \pi\) of the isotropic disc emission, re-emitted according to the selected
torus_emission_model.
torus_emission_model¶
The model describing the shape of the emission from the torus.
covering_fraction_blr (\(f_{\rm cov, BLR}\))¶
The covering fraction of the broad line region (BLR), determines:
the fraction of the isotropic disc incident emission that is reprocessed by the BLR.
the probability that the disc incident emission is transmitted through the BLR when the
disc_transmission="random"scenario is used.the fraction of the disc incident emission that is transmitted through the BLR when the
disc_transmission="weighted_combination"scenario is chosen.
covering_fraction_nlr (\(f_{\rm cov, NLR}\))¶
The covering fraction of the narrow line region (NLR), determines:
the fraction of the isotropic disc incident emission that is reprocessed by the NLR.
the probability that the disc incident emission is transmitted through the NLR when the
disc_transmission="random"scenario is used.the fraction of the disc incident emission that is transmitted through the NLR when the
disc_transmission="weighted_combination"scenario is chosen.
disc_transmission:¶
The UnifiedAGN model can flexibly account for the transmission of light from the disc. Available modes:
disc_transmission="none": light from the disc escapes unimpeded.disc_transmission="BLR": all transmitted emission passes through the BLR.disc_transmission="NLR": all transmitted emission passes through the NLR.disc_transmission="weighted_combination": the transmitted spectrum is the weighted sum of unobscured, BLR-transmitted, and NLR-transmitted components. This approximates the average over all unobscured sight-lines.disc_transmission="random": a transmission path (unobscured, BLR, or NLR) is chosen randomly, with probabilities given by the covering fractions.
diffuse_dust_curve:¶
If a dust attenuation curve (diffuse_dust_curve) is provided, and either tau_v is set on the black hole object or supplied directly to UnifiedAGN, the model will automatically apply attenuation from diffuse dust. Diffuse dust is assumed to affect all emission components.
diffuse_dust_emission_model:¶
If a dust emission model (diffuse_dust_emission_model) is also specified, then synthesizer will use energy balance to compute the corresponding diffuse dust emission and add this contribution to the returned spectrum.
[11]:
from synthesizer.emission_models import UnifiedAGN
# model with no dust attenuation or emission
uni_model = UnifiedAGN(
nlr_grid,
blr_grid,
torus_emission_model=Blackbody(1000 * kelvin),
)
print(uni_model)
uni_model.plot_emission_tree(fontsize=7)
|========================================================= EmissionModel: intrinsic ========================================================|
|-------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_INCIDENT_ISOTROPIC (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-nlr |
| Extract key: incident |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - cosine_inclination: 0.5 |
| - hydrogen_density: hydrogen_density_blr |
| - ionisation_parameter: ionisation_parameter_blr |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_INCIDENT_MASKED (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-nlr |
| Extract key: incident |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - hydrogen_density: hydrogen_density_blr |
| - ionisation_parameter: ionisation_parameter_blr |
| - torus_edgeon_cond: ParameterFunction(torus_edgeon_condition, sets='torus_edgeon_cond', args=('inclination', 'theta_torus')) |
| Masks: |
| - torus_edgeon_cond < 90 degree |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_TRANSMITTED_BLR_FULL (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-blr |
| Extract key: transmitted |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - hydrogen_density: hydrogen_density_blr |
| - ionisation_parameter: ionisation_parameter_blr |
| - torus_edgeon_cond: ParameterFunction(torus_edgeon_condition, sets='torus_edgeon_cond', args=('inclination', 'theta_torus')) |
| Masks: |
| - torus_edgeon_cond < 90 degree |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_TRANSMITTED_NLR_FULL (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-nlr |
| Extract key: transmitted |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - hydrogen_density: hydrogen_density_nlr |
| - ionisation_parameter: ionisation_parameter_nlr |
| - torus_edgeon_cond: ParameterFunction(torus_edgeon_condition, sets='torus_edgeon_cond', args=('inclination', 'theta_torus')) |
| Masks: |
| - torus_edgeon_cond < 90 degree |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| FULL_REPROCESSED_NLR (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-nlr |
| Extract key: nebular |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - cosine_inclination: 0.5 |
| - hydrogen_density: hydrogen_density_nlr |
| - ionisation_parameter: ionisation_parameter_nlr |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| FULL_REPROCESSED_BLR (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-blr |
| Extract key: nebular |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - torus_edgeon_cond: ParameterFunction(torus_edgeon_condition, sets='torus_edgeon_cond', args=('inclination', 'theta_torus')) |
| - cosine_inclination: 0.5 |
| - hydrogen_density: hydrogen_density_blr |
| - ionisation_parameter: ionisation_parameter_blr |
| Masks: |
| - torus_edgeon_cond < 90 degree |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_TRANSMITTED_BLR_ISOTROPIC_FULL (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-blr |
| Extract key: transmitted |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - cosine_inclination: 0.5 |
| - hydrogen_density: hydrogen_density_blr |
| - ionisation_parameter: ionisation_parameter_blr |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_TRANSMITTED_NLR_ISOTROPIC_FULL (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-nlr |
| Extract key: transmitted |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - cosine_inclination: 0.5 |
| - hydrogen_density: hydrogen_density_nlr |
| - ionisation_parameter: ionisation_parameter_nlr |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_INCIDENT (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-nlr |
| Extract key: incident |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - hydrogen_density: hydrogen_density_blr |
| - ionisation_parameter: ionisation_parameter_blr |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| FULL_CONTINUUM_NLR (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-nlr |
| Extract key: nebular_continuum |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - cosine_inclination: 0.5 |
| - hydrogen_density: hydrogen_density_nlr |
| - ionisation_parameter: ionisation_parameter_nlr |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| FULL_CONTINUUM_BLR (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-blr |
| Extract key: nebular_continuum |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - torus_edgeon_cond: ParameterFunction(torus_edgeon_condition, sets='torus_edgeon_cond', args=('inclination', 'theta_torus')) |
| - cosine_inclination: 0.5 |
| - hydrogen_density: hydrogen_density_blr |
| - ionisation_parameter: ionisation_parameter_blr |
| Masks: |
| - torus_edgeon_cond < 90 degree |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| TORUS (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Generation model: |
| Emission generation model: Blackbody(scaler=disc_incident_isotropic, temperature=1000 K) |
| Scaler model: disc_incident_isotropic |
| Save emission: True |
| Scaling by: |
| - torus_fraction |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_ESCAPED (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: disc_incident_masked |
| Save emission: True |
| Fixed parameters: |
| - transmission_fraction_escape: transmission_fraction_escape |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_TRANSMITTED_BLR (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: disc_transmitted_blr_full |
| Save emission: True |
| Fixed parameters: |
| - transmission_fraction_blr: transmission_fraction_blr |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_TRANSMITTED_NLR (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: disc_transmitted_nlr_full |
| Save emission: True |
| Fixed parameters: |
| - transmission_fraction_nlr: transmission_fraction_nlr |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_TRANSMITTED (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: disc_escaped, disc_transmitted_nlr, disc_transmitted_blr |
| Save emission: True |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| DISC (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: disc_transmitted |
| Save emission: True |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| NLR (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: full_reprocessed_nlr |
| Save emission: True |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| BLR (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: full_reprocessed_blr |
| Save emission: True |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| INTRINSIC (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: disc, nlr, blr, torus |
| Save emission: True |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_TRANSMITTED_NLR_WEIGHTED (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: disc_transmitted_nlr_full |
| Save emission: True |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_ESCAPED_WEIGHTED (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: disc_incident_masked |
| Save emission: True |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_TRANSMITTED_BLR_WEIGHTED (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: disc_transmitted_blr_full |
| Save emission: True |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_TRANSMITTED_WEIGHTED_COMBINATION (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: disc_escaped_weighted, disc_transmitted_nlr_weighted, disc_transmitted_blr_weighted |
| Save emission: True |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_ESCAPED_ISOTROPIC (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.EscapingFraction'> |
| Apply to: disc_incident_isotropic |
| Save emission: True |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_TRANSMITTED_BLR_ISOTROPIC (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: disc_transmitted_blr_isotropic_full |
| Save emission: True |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_TRANSMITTED_NLR_ISOTROPIC (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: disc_transmitted_nlr_isotropic_full |
| Save emission: True |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_AVERAGED_WITHOUT_TORUS (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: disc_escaped_isotropic, disc_transmitted_nlr_isotropic, disc_transmitted_blr_isotropic |
| Save emission: True |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_AVERAGED (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.EscapingFraction'> |
| Apply to: disc_averaged_without_torus |
| Save emission: True |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| NLR_CONTINUUM (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: full_continuum_nlr |
| Save emission: True |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| LINE_REGIONS (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: nlr, blr |
| Save emission: True |
|-------------------------------------------------------------------------------------------------------------------------------------------|
| BLR_CONTINUUM (blackhole) |
|-------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: full_continuum_blr |
| Save emission: True |
|===========================================================================================================================================|
[11]:
(<Figure size 600x600 with 1 Axes>, <Axes: >)
[12]:
# model with dust attenuation and emission
uni_model = UnifiedAGN(
nlr_grid,
blr_grid,
torus_emission_model=Blackbody(1000 * kelvin),
diffuse_dust_curve=PowerLaw(slope=-1.0),
diffuse_dust_emission_model=Greybody(30 * kelvin, emissivity=2.0),
)
print(uni_model)

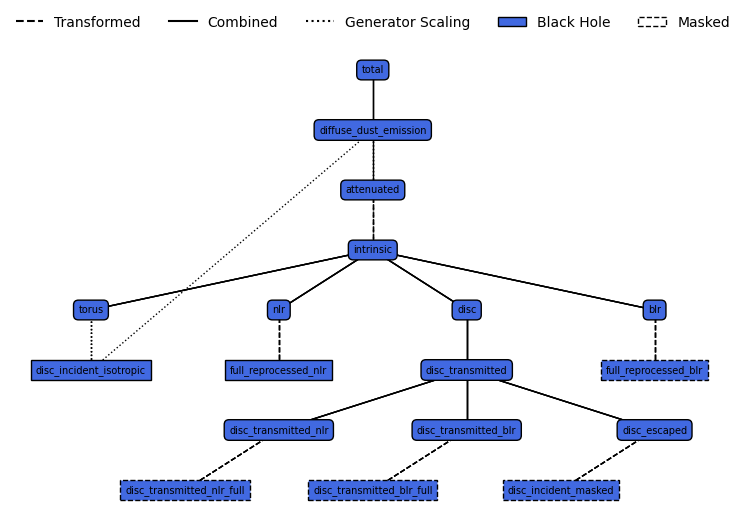

uni_model.plot_emission_tree(fontsize=7, figsize=(8, 6))
|====================================================================== EmissionModel: total ======================================================================|
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_INCIDENT_ISOTROPIC (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-nlr |
| Extract key: incident |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - cosine_inclination: 0.5 |
| - hydrogen_density: hydrogen_density_blr |
| - ionisation_parameter: ionisation_parameter_blr |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| FULL_REPROCESSED_NLR (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-nlr |
| Extract key: nebular |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - cosine_inclination: 0.5 |
| - hydrogen_density: hydrogen_density_nlr |
| - ionisation_parameter: ionisation_parameter_nlr |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_TRANSMITTED_NLR_FULL (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-nlr |
| Extract key: transmitted |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - hydrogen_density: hydrogen_density_nlr |
| - ionisation_parameter: ionisation_parameter_nlr |
| - torus_edgeon_cond: ParameterFunction(torus_edgeon_condition, sets='torus_edgeon_cond', args=('inclination', 'theta_torus')) |
| Masks: |
| - torus_edgeon_cond < 90 degree |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_TRANSMITTED_BLR_FULL (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-blr |
| Extract key: transmitted |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - hydrogen_density: hydrogen_density_blr |
| - ionisation_parameter: ionisation_parameter_blr |
| - torus_edgeon_cond: ParameterFunction(torus_edgeon_condition, sets='torus_edgeon_cond', args=('inclination', 'theta_torus')) |
| Masks: |
| - torus_edgeon_cond < 90 degree |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_INCIDENT_MASKED (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-nlr |
| Extract key: incident |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - hydrogen_density: hydrogen_density_blr |
| - ionisation_parameter: ionisation_parameter_blr |
| - torus_edgeon_cond: ParameterFunction(torus_edgeon_condition, sets='torus_edgeon_cond', args=('inclination', 'theta_torus')) |
| Masks: |
| - torus_edgeon_cond < 90 degree |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| FULL_REPROCESSED_BLR (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-blr |
| Extract key: nebular |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - torus_edgeon_cond: ParameterFunction(torus_edgeon_condition, sets='torus_edgeon_cond', args=('inclination', 'theta_torus')) |
| - cosine_inclination: 0.5 |
| - hydrogen_density: hydrogen_density_blr |
| - ionisation_parameter: ionisation_parameter_blr |
| Masks: |
| - torus_edgeon_cond < 90 degree |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_TRANSMITTED_NLR_ISOTROPIC_FULL (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-nlr |
| Extract key: transmitted |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - cosine_inclination: 0.5 |
| - hydrogen_density: hydrogen_density_nlr |
| - ionisation_parameter: ionisation_parameter_nlr |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_TRANSMITTED_BLR_ISOTROPIC_FULL (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-blr |
| Extract key: transmitted |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - cosine_inclination: 0.5 |
| - hydrogen_density: hydrogen_density_blr |
| - ionisation_parameter: ionisation_parameter_blr |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| FULL_CONTINUUM_NLR (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-nlr |
| Extract key: nebular_continuum |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - cosine_inclination: 0.5 |
| - hydrogen_density: hydrogen_density_nlr |
| - ionisation_parameter: ionisation_parameter_nlr |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| FULL_CONTINUUM_BLR (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-blr |
| Extract key: nebular_continuum |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - torus_edgeon_cond: ParameterFunction(torus_edgeon_condition, sets='torus_edgeon_cond', args=('inclination', 'theta_torus')) |
| - cosine_inclination: 0.5 |
| - hydrogen_density: hydrogen_density_blr |
| - ionisation_parameter: ionisation_parameter_blr |
| Masks: |
| - torus_edgeon_cond < 90 degree |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_INCIDENT (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid_agn-nlr |
| Extract key: incident |
| Use velocity shift: False |
| Save emission: True |
| Fixed parameters: |
| - hydrogen_density: hydrogen_density_blr |
| - ionisation_parameter: ionisation_parameter_blr |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| TORUS (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Generation model: |
| Emission generation model: Blackbody(scaler=disc_incident_isotropic, temperature=1000 K) |
| Scaler model: disc_incident_isotropic |
| Save emission: True |
| Scaling by: |
| - torus_fraction |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| NLR (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: full_reprocessed_nlr |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_TRANSMITTED_NLR (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: disc_transmitted_nlr_full |
| Save emission: True |
| Fixed parameters: |
| - transmission_fraction_nlr: transmission_fraction_nlr |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_TRANSMITTED_BLR (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: disc_transmitted_blr_full |
| Save emission: True |
| Fixed parameters: |
| - transmission_fraction_blr: transmission_fraction_blr |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_ESCAPED (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: disc_incident_masked |
| Save emission: True |
| Fixed parameters: |
| - transmission_fraction_escape: transmission_fraction_escape |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_TRANSMITTED (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: disc_escaped, disc_transmitted_nlr, disc_transmitted_blr |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| DISC (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: disc_transmitted |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| BLR (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: full_reprocessed_blr |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| INTRINSIC (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: disc, nlr, blr, torus |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| ATTENUATED (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.dust_attenuation.PowerLaw'> |
| Apply to: intrinsic |
| Save emission: True |
| Fixed parameters: |
| - tau_v: tau_v |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| DIFFUSE_DUST_EMISSION (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Generation model: |
| Emission generation model: Greybody(intrinsic=intrinsic, attenuated=attenuated, temperature=30 K, emissivity=2.0, optically_thin=True, lam_0=100.0 μm) |
| Intrinsic energy balance model: intrinsic |
| Attenuated energy balance model: attenuated |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| TOTAL (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: attenuated, diffuse_dust_emission |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_TRANSMITTED_NLR_WEIGHTED (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: disc_transmitted_nlr_full |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_TRANSMITTED_BLR_WEIGHTED (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: disc_transmitted_blr_full |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_ESCAPED_WEIGHTED (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: disc_incident_masked |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_TRANSMITTED_WEIGHTED_COMBINATION (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: disc_escaped_weighted, disc_transmitted_nlr_weighted, disc_transmitted_blr_weighted |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_ESCAPED_ISOTROPIC (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.EscapingFraction'> |
| Apply to: disc_incident_isotropic |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_TRANSMITTED_NLR_ISOTROPIC (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: disc_transmitted_nlr_isotropic_full |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_TRANSMITTED_BLR_ISOTROPIC (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: disc_transmitted_blr_isotropic_full |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_AVERAGED_WITHOUT_TORUS (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: disc_escaped_isotropic, disc_transmitted_nlr_isotropic, disc_transmitted_blr_isotropic |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| DISC_AVERAGED (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.EscapingFraction'> |
| Apply to: disc_averaged_without_torus |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| NLR_CONTINUUM (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: full_continuum_nlr |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| LINE_REGIONS (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: nlr, blr |
| Save emission: True |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| BLR_CONTINUUM (blackhole) |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.CoveringFraction'> |
| Apply to: full_continuum_blr |
| Save emission: True |
|==================================================================================================================================================================|
[12]:
(<Figure size 800x600 with 1 Axes>, <Axes: >)
Fully worked examples¶
Fully worked examples demonstrating the use of the UnifiedAGN model can be found in the following notebooks:
- This notebook provides a step-by-step guide to constructing the intrinsic spectrum of a black hole using the
UnifiedAGNframework, including examples of configuring model parameters and generating output spectra. - Here we show how to build the full, composite spectrum of a galaxy that includes both stellar emission and an AGN component. The notebook also illustrates how to incorporate attenuation and reprocessing effects.
- This example demonstrates how to derive broadband photometry from composite galaxy spectra, showing how to apply filter curves, compute fluxes, and generate synthetic observations.
These notebooks provide complete, ready-to-run examples and are the recommended starting point for anyone wishing to use or adapt the UnifiedAGN model in their own workflows.
