Stellar Spectra¶
Stellar spectra can be generated by combining a Stars object with an EmissionModel, translating the properties of the stellar populations (typically initial_masses, ages and metallicities) to a spectral energy distribution.
These models are described in detail in the emission model docs. Here, we’ll use an instance of a PacmanEmission model for demonstration purposes.
The following sections demonstrate the generation of integrated spectra (which is the same for both parametric and particle Stars), and per–particle spectra.
[1]:
from unyt import K, Msun, Myr
from synthesizer.emission_models import (
AttenuatedEmission,
Greybody,
PacmanEmission,
)
from synthesizer.emission_models.attenuation import PowerLaw
from synthesizer.grid import Grid
from synthesizer.load_data.load_camels import load_CAMELS_IllustrisTNG
from synthesizer.parametric import SFH, Stars, ZDist
tau_v = 0.5
# dust curve slope
alpha = -1.0
dust_curve = PowerLaw(slope=alpha)
dust_emission_model = Greybody(30 * K, 1.2)
grid_name = "test_grid"
grid = Grid(grid_name)
stellar_mass = 10**11 * Msun
sfh = SFH.Constant(max_age=100 * Myr)
metal_dist = ZDist.Normal(mean=0.01, sigma=0.05)
# Get the 2D star formation and metal enrichment history for the
# given SPS grid. This is (age, Z).
stars = Stars(
grid.log10ages,
grid.metallicities,
sf_hist=sfh,
metal_dist=metal_dist,
initial_mass=stellar_mass,
)
# Get the model
pacman = PacmanEmission(
grid=grid,
tau_v=tau_v,
dust_curve=dust_curve,
dust_emission=dust_emission_model,
)
print(pacman)
|======================================================================= EmissionModel: total =======================================================================|
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| TOTAL (stellar) |
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: dust_emission, emergent |
| Save emission: True |
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| DUST_EMISSION (stellar) |
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Generation model: |
| Emission generation model: Greybody(intrinsic=reprocessed, attenuated=attenuated, temperature=30 K, emissivity=1.2, optically_thin=True, lam_0=100.0 μm) |
| Intrinsic energy balance model: reprocessed |
| Attenuated energy balance model: attenuated |
| Save emission: True |
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| ATTENUATED (stellar) |
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.dust_attenuation.PowerLaw'> |
| Apply to: reprocessed |
| Save emission: True |
| Fixed parameters: |
| - tau_v: 0.5 |
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| REPROCESSED (stellar) |
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: nebular, transmitted |
| Save emission: True |
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| TRANSMITTED (stellar) |
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.ProcessedFraction'> |
| Apply to: full_transmitted |
| Save emission: True |
| Fixed parameters: |
| - fesc: fesc |
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| FULL_TRANSMITTED (stellar) |
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid |
| Extract key: transmitted |
| Use velocity shift: False |
| Save emission: True |
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| NEBULAR (stellar) |
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: nebular_line, nebular_continuum |
| Save emission: True |
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| NEBULAR_CONTINUUM (stellar) |
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid |
| Extract key: nebular_continuum |
| Use velocity shift: False |
| Save emission: True |
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| NEBULAR_LINE (stellar) |
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.EscapedFraction'> |
| Apply to: _nebular_line_no_fesc |
| Save emission: True |
| Fixed parameters: |
| - fesc_ly_alpha: fesc_ly_alpha |
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| _NEBULAR_LINE_NO_FESC (stellar) |
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid |
| Extract key: linecont |
| Use velocity shift: False |
| Save emission: False |
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| EMERGENT (stellar) |
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: attenuated, escaped |
| Save emission: True |
| Fixed parameters: |
| - fesc: fesc |
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| ESCAPED (stellar) |
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Transformer model: |
| Transformer: <class 'synthesizer.emission_models.transformers.escape_fraction.EscapedFraction'> |
| Apply to: incident |
| Save emission: True |
| Fixed parameters: |
| - fesc: fesc |
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| INCIDENT (stellar) |
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Extraction model: |
| Grid: test_grid |
| Extract key: incident |
| Use velocity shift: False |
| Save emission: True |
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| INTRINSIC (stellar) |
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|Combination model: |
| Combine models: reprocessed, escaped |
| Save emission: True |
|====================================================================================================================================================================|
Integrated spectra¶
To generate integrated spectra we simply call the components get_spectra method. This method will populate the component’s spectra attribute with a dictionary containing Sed objects for each spectra in the EmissionModel and will also return the spectra at the root of the EmissionModel.
[2]:
# Get the spectra using a unified agn model (instantiated elsewhere)
spectra = stars.get_spectra(pacman)

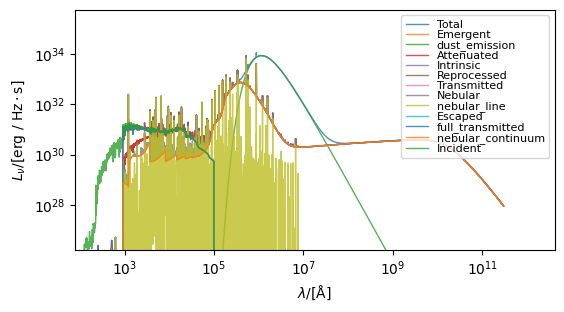

We can plot the resulting spectra using the plot_spectra method.
[3]:
fig, ax = stars.plot_spectra(show=True, figsize=(6, 4))
The spectra returned by get_spectra is the “total” spectra at the root of the emission model.
[4]:
print(spectra)
+----------------------------------------------------------------------------------------------------+
| SED |
+---------------------------+------------------------------------------------------------------------+
| Attribute | Value |
+---------------------------+------------------------------------------------------------------------+
| redshift | 0 |
+---------------------------+------------------------------------------------------------------------+
| ndim | 1 |
+---------------------------+------------------------------------------------------------------------+
| nlam | 9244 |
+---------------------------+------------------------------------------------------------------------+
| shape | (9244,) |
+---------------------------+------------------------------------------------------------------------+
| lam (9244,) | 1.30e-04 Å -> 2.99e+11 Å (Mean: 9.73e+09 Å) |
+---------------------------+------------------------------------------------------------------------+
| nu (9244,) | 1.00e+07 Hz -> 2.31e+22 Hz (Mean: 8.51e+19 Hz) |
+---------------------------+------------------------------------------------------------------------+
| lnu (9244,) | 0.00e+00 erg/(Hz*s) -> 1.65e+34 erg/(Hz*s) (Mean: 4.05e+32 erg/(Hz*s)) |
+---------------------------+------------------------------------------------------------------------+
| bolometric_luminosity | 4.8220135211989e+46 erg/s |
+---------------------------+------------------------------------------------------------------------+
| energy (9244,) | 4.14e-08 eV -> 9.56e+07 eV (Mean: 3.52e+05 eV) |
+---------------------------+------------------------------------------------------------------------+
| frequency (9244,) | 1.00e+07 Hz -> 2.31e+22 Hz (Mean: 8.51e+19 Hz) |
+---------------------------+------------------------------------------------------------------------+
| llam (9244,) | 0.00e+00 erg/(s*Å) -> 5.69e+43 erg/(s*Å) (Mean: 1.32e+41 erg/(s*Å)) |
+---------------------------+------------------------------------------------------------------------+
| luminosity (9244,) | 0.00e+00 erg/s -> 6.92e+46 erg/s (Mean: 1.57e+45 erg/s) |
+---------------------------+------------------------------------------------------------------------+
| luminosity_lambda (9244,) | 0.00e+00 erg/(s*Å) -> 5.69e+43 erg/(s*Å) (Mean: 1.32e+41 erg/(s*Å)) |
+---------------------------+------------------------------------------------------------------------+
| luminosity_nu (9244,) | 0.00e+00 erg/(Hz*s) -> 1.65e+34 erg/(Hz*s) (Mean: 4.05e+32 erg/(Hz*s)) |
+---------------------------+------------------------------------------------------------------------+
| wavelength (9244,) | 1.30e-04 Å -> 2.99e+11 Å (Mean: 9.73e+09 Å) |
+---------------------------+------------------------------------------------------------------------+
However, all the spectra are stored within a dictionary under the spectra attribute on the relevant component.
[5]:
print(stars.spectra)
{'nebular_continuum': <synthesizer.emissions.sed.Sed object at 0x7fb12c8ff2e0>, 'full_transmitted': <synthesizer.emissions.sed.Sed object at 0x7fb12c8feb30>, 'incident': <synthesizer.emissions.sed.Sed object at 0x7fb12c8ff160>, 'nebular_line': <synthesizer.emissions.sed.Sed object at 0x7fb12c8ff460>, 'transmitted': <synthesizer.emissions.sed.Sed object at 0x7fb12c8febc0>, 'escaped': <synthesizer.emissions.sed.Sed object at 0x7fb12c8ff280>, 'nebular': <synthesizer.emissions.sed.Sed object at 0x7fb12c8ff430>, 'reprocessed': <synthesizer.emissions.sed.Sed object at 0x7fb12c8ff3a0>, 'attenuated': <synthesizer.emissions.sed.Sed object at 0x7fb12cab0bb0>, 'intrinsic': <synthesizer.emissions.sed.Sed object at 0x7fb12c8ff340>, 'dust_emission': <synthesizer.emissions.sed.Sed object at 0x7fb12cab1d50>, 'emergent': <synthesizer.emissions.sed.Sed object at 0x7fb12cab0490>, 'total': <synthesizer.emissions.sed.Sed object at 0x7fb12cab25c0>}
Particle spectra¶
In this example we load some test particle data from CAMELS:
[6]:
from synthesizer import TEST_DATA_DIR
# Create stars component object
stars = load_CAMELS_IllustrisTNG(
TEST_DATA_DIR,
snap_name="camels_snap.hdf5",
group_name="camels_subhalo.hdf5",
physical=True,
)[1].stars
To generate a spectra for each star particle we use the same model, but we need to tell the model to produce a spectrum for each particle. This is done by setting the per_particle flag to True on the model.
[7]:
pacman.set_per_particle(True)
With that done we just call the same get_spectra method on the component, and the particle spectra will be stored in the particle_spectra attribute of the component.
[8]:
spectra = stars.get_spectra(pacman, verbose=True)
Again, the returned spectra is the “total” spectra from the root of the model.
[9]:
print(spectra)
+--------------------------------------------------------------------------------------------------------+
| SED |
+-------------------------------+------------------------------------------------------------------------+
| Attribute | Value |
+-------------------------------+------------------------------------------------------------------------+
| redshift | 0 |
+-------------------------------+------------------------------------------------------------------------+
| ndim | 2 |
+-------------------------------+------------------------------------------------------------------------+
| nlam | 9244 |
+-------------------------------+------------------------------------------------------------------------+
| shape | (656, 9244) |
+-------------------------------+------------------------------------------------------------------------+
| lam (9244,) | 1.30e-04 Å -> 2.99e+11 Å (Mean: 9.73e+09 Å) |
+-------------------------------+------------------------------------------------------------------------+
| nu (9244,) | 1.00e+07 Hz -> 2.31e+22 Hz (Mean: 8.51e+19 Hz) |
+-------------------------------+------------------------------------------------------------------------+
| lnu (656, 9244) | 0.00e+00 erg/(Hz*s) -> 6.63e+27 erg/(Hz*s) (Mean: 1.27e+26 erg/(Hz*s)) |
+-------------------------------+------------------------------------------------------------------------+
| bolometric_luminosity (656,) | 1.21e+40 erg/s -> 8.52e+40 erg/s (Mean: 3.71e+40 erg/s) |
+-------------------------------+------------------------------------------------------------------------+
| energy (9244,) | 4.14e-08 eV -> 9.56e+07 eV (Mean: 3.52e+05 eV) |
+-------------------------------+------------------------------------------------------------------------+
| frequency (9244,) | 1.00e+07 Hz -> 2.31e+22 Hz (Mean: 8.51e+19 Hz) |
+-------------------------------+------------------------------------------------------------------------+
| llam (656, 9244) | 0.00e+00 erg/(s*Å) -> 5.21e+36 erg/(s*Å) (Mean: 9.26e+34 erg/(s*Å)) |
+-------------------------------+------------------------------------------------------------------------+
| luminosity (656, 9244) | 0.00e+00 erg/s -> 4.41e+40 erg/s (Mean: 1.21e+39 erg/s) |
+-------------------------------+------------------------------------------------------------------------+
| luminosity_lambda (656, 9244) | 0.00e+00 erg/(s*Å) -> 5.21e+36 erg/(s*Å) (Mean: 9.26e+34 erg/(s*Å)) |
+-------------------------------+------------------------------------------------------------------------+
| luminosity_nu (656, 9244) | 0.00e+00 erg/(Hz*s) -> 6.63e+27 erg/(Hz*s) (Mean: 1.27e+26 erg/(Hz*s)) |
+-------------------------------+------------------------------------------------------------------------+
| wavelength (9244,) | 1.30e-04 Å -> 2.99e+11 Å (Mean: 9.73e+09 Å) |
+-------------------------------+------------------------------------------------------------------------+
While the spectra produced by get_particle_spectra are stored in a dictionary under the particle_spectra attribute.
[10]:
print(stars.particle_spectra)
{'nebular_continuum': <synthesizer.emissions.sed.Sed object at 0x7fb12c8ff3d0>, 'full_transmitted': <synthesizer.emissions.sed.Sed object at 0x7fb0cc6295a0>, 'incident': <synthesizer.emissions.sed.Sed object at 0x7fb12c8fec80>, 'nebular_line': <synthesizer.emissions.sed.Sed object at 0x7fb0cc34dae0>, 'transmitted': <synthesizer.emissions.sed.Sed object at 0x7fb0cc34dea0>, 'escaped': <synthesizer.emissions.sed.Sed object at 0x7fb0cc34e9e0>, 'nebular': <synthesizer.emissions.sed.Sed object at 0x7fb0cc34c220>, 'reprocessed': <synthesizer.emissions.sed.Sed object at 0x7fb0cc337eb0>, 'attenuated': <synthesizer.emissions.sed.Sed object at 0x7fb0cc337dc0>, 'intrinsic': <synthesizer.emissions.sed.Sed object at 0x7fb0cc337d60>, 'dust_emission': <synthesizer.emissions.sed.Sed object at 0x7fb0cc336440>, 'emergent': <synthesizer.emissions.sed.Sed object at 0x7fb0cc336590>, 'total': <synthesizer.emissions.sed.Sed object at 0x7fb0cc335a80>}
Integrating spectra¶

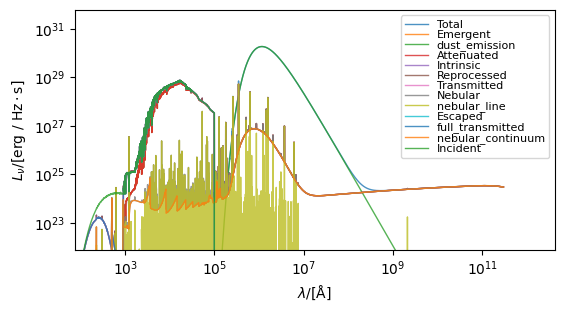

The integrated spectra are automatically produced alongside per particle spectra. However, if we wanted to explictly get the integrated spectra from the particle spectra we just generated (for instance if we had made some modification after generation), we can call the integrate_particle_spectra method. This method will sum the individual spectra, and populate the spectra dictionary (overwriting whats already there!).
Note that we can also integrate individual spectra using the `Sed.sum() method <../../sed/sed.ipynb>`__.
[11]:
print(stars.spectra)
stars.integrate_particle_spectra()
print(stars.spectra)
fig, ax = stars.plot_spectra(show=True, figsize=(6, 4))
{'nebular_continuum': <synthesizer.emissions.sed.Sed object at 0x7fb12c8feb60>, 'full_transmitted': <synthesizer.emissions.sed.Sed object at 0x7fb0cc34fa60>, 'incident': <synthesizer.emissions.sed.Sed object at 0x7fb0cc34f7f0>, 'nebular_line': <synthesizer.emissions.sed.Sed object at 0x7fb12c8fef20>, 'transmitted': <synthesizer.emissions.sed.Sed object at 0x7fb12c8ff130>, 'escaped': <synthesizer.emissions.sed.Sed object at 0x7fb0cc34c940>, 'nebular': <synthesizer.emissions.sed.Sed object at 0x7fb0cc34c160>, 'reprocessed': <synthesizer.emissions.sed.Sed object at 0x7fb0cc3373a0>, 'attenuated': <synthesizer.emissions.sed.Sed object at 0x7fb0cc335de0>, 'intrinsic': <synthesizer.emissions.sed.Sed object at 0x7fb0cc3379a0>, 'dust_emission': <synthesizer.emissions.sed.Sed object at 0x7fb0cc337bb0>, 'emergent': <synthesizer.emissions.sed.Sed object at 0x7fb0cc337e80>, 'total': <synthesizer.emissions.sed.Sed object at 0x7fb0cc335e40>}
{'nebular_continuum': <synthesizer.emissions.sed.Sed object at 0x7fb0cc5d6e30>, 'full_transmitted': <synthesizer.emissions.sed.Sed object at 0x7fb12c8fed40>, 'incident': <synthesizer.emissions.sed.Sed object at 0x7fb0cc34fa60>, 'nebular_line': <synthesizer.emissions.sed.Sed object at 0x7fb0cc34f7f0>, 'transmitted': <synthesizer.emissions.sed.Sed object at 0x7fb12c8feb60>, 'escaped': <synthesizer.emissions.sed.Sed object at 0x7fb12c8fef20>, 'nebular': <synthesizer.emissions.sed.Sed object at 0x7fb12c8fed70>, 'reprocessed': <synthesizer.emissions.sed.Sed object at 0x7fb12c8fef80>, 'attenuated': <synthesizer.emissions.sed.Sed object at 0x7fb12c8fecb0>, 'intrinsic': <synthesizer.emissions.sed.Sed object at 0x7fb12c8fec50>, 'dust_emission': <synthesizer.emissions.sed.Sed object at 0x7fb12c8fe950>, 'emergent': <synthesizer.emissions.sed.Sed object at 0x7fb12c8ff2b0>, 'total': <synthesizer.emissions.sed.Sed object at 0x7fb0cc628550>}
Varying model parameters and reusing existing spectra¶
If we want vary one or more model parameters (e.g., dust attenuation parameters), we don’t want to regenerate the whole model from scratch. Instead, we can create a new model that reuses an existing spectra on the emitter. To signal this we pass a string to the model instead of another EmissionModel.
For our example of dust attenuation, this means passing a string to the apply_to argument of the AttenuatedEmission model. This string should match one of the keys in the emitter’s spectra dictionary, here we use "reprocessed". When we run this it will extract the relevant spectra from the emitter and apply the attenuation to it without regenerating the original spectra.
[12]:
# Since we now want integrated spectra lets remove the per particle flag
pacman.set_per_particle(False)
spectra = {}
for tau_v in [0.1, 0.5, 1.0]:
# Create a new model to modify the existing "intrinsic"
attenuated = AttenuatedEmission(
label=f"attenuated_tauv_{tau_v}",
tau_v=tau_v,
dust_curve=dust_curve,
emitter="stellar",
apply_to="reprocessed",
)
stars.get_spectra(attenuated)
spectra[r"$\tau_v " f"= {tau_v}"] = stars.spectra[attenuated.label]
This is also applicable to the combine argument on Combinations and the various dependencies for generators (like intrinsic and attenuated spectra for energy balance dust emission models).

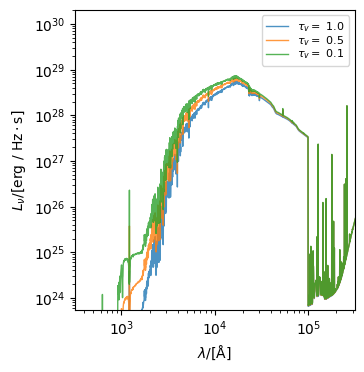

To see the variation above we can pass the dictionary we populated with the varied spectra to the plot_spectra function (where the dictionary keys will be used as labels).
[13]:
from synthesizer.emissions import plot_spectra
plot_spectra(spectra, xlimits=(10**2.5, 10**5.5))
[13]:
(<Figure size 350x500 with 1 Axes>,
<Axes: xlabel='$\\lambda/[\\mathrm{\\AA}]$', ylabel='$L_{\\nu}/[\\mathrm{\\rm{erg} \\ / \\ \\rm{Hz \\cdot \\rm{s}}}]$'>)
Printing Used Parameters¶
During spectra generation, emission models cache the parameters they extract and use from the emitter. These cached parameters can be printed in a nicely formatted table to inspect which values were actually used by each model.
[14]:
# Print the cached parameters used by the models
stars.print_used_parameters()
+----------------------------------------------------------------------------------+
| MODEL: _NEBULAR_LINE_NO_FESC |
+---------------------------+------------------------------------------------------+
| Attribute | Value |
+---------------------------+------------------------------------------------------+
| extract | 'linecont' |
+---------------------------+------------------------------------------------------+
| emitter | 'stellar' |
+---------------------------+------------------------------------------------------+
| log10ages (656,) | 9.53e+00 -> 1.01e+01 (Mean: 9.81e+00) |
+---------------------------+------------------------------------------------------+
| log10metallicities (656,) | -5.00e+00 -> -1.45e+00 (Mean: -2.04e+00) |
+---------------------------+------------------------------------------------------+
| initial_masses (656,) | 9.43e+06 Msun -> 3.77e+07 Msun (Mean: 2.36e+07 Msun) |
+---------------------------+------------------------------------------------------+
+----------------------------------------------------------------------------------+
| MODEL: NEBULAR_CONTINUUM |
+---------------------------+------------------------------------------------------+
| Attribute | Value |
+---------------------------+------------------------------------------------------+
| extract | 'nebular_continuum' |
+---------------------------+------------------------------------------------------+
| emitter | 'stellar' |
+---------------------------+------------------------------------------------------+
| log10ages (656,) | 9.53e+00 -> 1.01e+01 (Mean: 9.81e+00) |
+---------------------------+------------------------------------------------------+
| log10metallicities (656,) | -5.00e+00 -> -1.45e+00 (Mean: -2.04e+00) |
+---------------------------+------------------------------------------------------+
| initial_masses (656,) | 9.43e+06 Msun -> 3.77e+07 Msun (Mean: 2.36e+07 Msun) |
+---------------------------+------------------------------------------------------+
+----------------------------------------------------------------------------------+
| MODEL: FULL_TRANSMITTED |
+---------------------------+------------------------------------------------------+
| Attribute | Value |
+---------------------------+------------------------------------------------------+
| extract | 'transmitted' |
+---------------------------+------------------------------------------------------+
| emitter | 'stellar' |
+---------------------------+------------------------------------------------------+
| log10ages (656,) | 9.53e+00 -> 1.01e+01 (Mean: 9.81e+00) |
+---------------------------+------------------------------------------------------+
| log10metallicities (656,) | -5.00e+00 -> -1.45e+00 (Mean: -2.04e+00) |
+---------------------------+------------------------------------------------------+
| initial_masses (656,) | 9.43e+06 Msun -> 3.77e+07 Msun (Mean: 2.36e+07 Msun) |
+---------------------------+------------------------------------------------------+
+----------------------------------------------------------------------------------+
| MODEL: INCIDENT |
+---------------------------+------------------------------------------------------+
| Attribute | Value |
+---------------------------+------------------------------------------------------+
| extract | 'incident' |
+---------------------------+------------------------------------------------------+
| emitter | 'stellar' |
+---------------------------+------------------------------------------------------+
| log10ages (656,) | 9.53e+00 -> 1.01e+01 (Mean: 9.81e+00) |
+---------------------------+------------------------------------------------------+
| log10metallicities (656,) | -5.00e+00 -> -1.45e+00 (Mean: -2.04e+00) |
+---------------------------+------------------------------------------------------+
| initial_masses (656,) | 9.43e+06 Msun -> 3.77e+07 Msun (Mean: 2.36e+07 Msun) |
+---------------------------+------------------------------------------------------+
+------------------------------------------------------------------+
| MODEL: NEBULAR_LINE |
+---------------+--------------------------------------------------+
| Attribute | Value |
+---------------+--------------------------------------------------+
| fesc_ly_alpha | 1.00 |
+---------------+--------------------------------------------------+
| apply_to | '_nebular_line_no_fesc' |
+---------------+--------------------------------------------------+
| transformer | "EscapedFraction(fesc_attrs=('fesc_ly_alpha',))" |
+---------------+--------------------------------------------------+
| emitter | 'stellar' |
+---------------+--------------------------------------------------+
+---------------------------------------------------------+
| MODEL: TRANSMITTED |
+-------------+-------------------------------------------+
| Attribute | Value |
+-------------+-------------------------------------------+
| fesc | 0.00e+00 |
+-------------+-------------------------------------------+
| apply_to | 'full_transmitted' |
+-------------+-------------------------------------------+
| transformer | "ProcessedFraction(fesc_attrs=('fesc',))" |
+-------------+-------------------------------------------+
| emitter | 'stellar' |
+-------------+-------------------------------------------+
+-------------------------------------------------------+
| MODEL: ESCAPED |
+-------------+-----------------------------------------+
| Attribute | Value |
+-------------+-----------------------------------------+
| fesc | 0.00e+00 |
+-------------+-----------------------------------------+
| apply_to | 'incident' |
+-------------+-----------------------------------------+
| transformer | "EscapedFraction(fesc_attrs=('fesc',))" |
+-------------+-----------------------------------------+
| emitter | 'stellar' |
+-------------+-----------------------------------------+
+----------------------------------------------+
| MODEL: NEBULAR |
+----------+-----------------------------------+
| Attribute | Value |
+----------+-----------------------------------+
| emitter | 'stellar' |
+----------+-----------------------------------+
| combine | [nebular_line, nebular_continuum] |
+----------+-----------------------------------+
+-----------------------------------+
| MODEL: REPROCESSED |
+----------+------------------------+
| Attribute | Value |
+----------+------------------------+
| emitter | 'stellar' |
+----------+------------------------+
| combine | [nebular, transmitted] |
+----------+------------------------+
+--------------------------------------+
| MODEL: ATTENUATED |
+-------------+------------------------+
| Attribute | Value |
+-------------+------------------------+
| tau_v | 0.50 |
+-------------+------------------------+
| slope | -1.00e+00 |
+-------------+------------------------+
| apply_to | 'reprocessed' |
+-------------+------------------------+
| transformer | 'PowerLaw(slope=-1.0)' |
+-------------+------------------------+
| emitter | 'stellar' |
+-------------+------------------------+
+-----------------------------------+
| MODEL: INTRINSIC |
+----------+------------------------+
| Attribute | Value |
+----------+------------------------+
| emitter | 'stellar' |
+----------+------------------------+
| combine | [reprocessed, escaped] |
+----------+------------------------+
+-----------------------------------------------------------------------------------------------------------------------------------------------+
| MODEL: DUST_EMISSION |
+-------------+---------------------------------------------------------------------------------------------------------------------------------+
| Attribute | Value |
+-------------+---------------------------------------------------------------------------------------------------------------------------------+
| emissivity | 1.20 |
+-------------+---------------------------------------------------------------------------------------------------------------------------------+
| generator | 'Greybody(intrinsic=reprocessed, attenuated=attenuated, temperature=30 K, emissivity=1.2, optically_thin=True, lam_0=100.0 μm)' |
+-------------+---------------------------------------------------------------------------------------------------------------------------------+
| emitter | 'stellar' |
+-------------+---------------------------------------------------------------------------------------------------------------------------------+
| temperature | 30 K |
+-------------+---------------------------------------------------------------------------------------------------------------------------------+
+----------------------------------+
| MODEL: EMERGENT |
+----------+-----------------------+
| Attribute | Value |
+----------+-----------------------+
| emitter | 'stellar' |
+----------+-----------------------+
| combine | [attenuated, escaped] |
+----------+-----------------------+
+--------------------------------------+
| MODEL: TOTAL |
+----------+---------------------------+
| Attribute | Value |
+----------+---------------------------+
| emitter | 'stellar' |
+----------+---------------------------+
| combine | [dust_emission, emergent] |
+----------+---------------------------+
+--------------------------------------+
| MODEL: ATTENUATED_TAUV_0.1 |
+-------------+------------------------+
| Attribute | Value |
+-------------+------------------------+
| tau_v | 0.10 |
+-------------+------------------------+
| slope | -1.00e+00 |
+-------------+------------------------+
| apply_to | 'reprocessed' |
+-------------+------------------------+
| transformer | 'PowerLaw(slope=-1.0)' |
+-------------+------------------------+
| emitter | 'stellar' |
+-------------+------------------------+
+--------------------------------------+
| MODEL: ATTENUATED_TAUV_0.5 |
+-------------+------------------------+
| Attribute | Value |
+-------------+------------------------+
| tau_v | 0.50 |
+-------------+------------------------+
| slope | -1.00e+00 |
+-------------+------------------------+
| apply_to | 'reprocessed' |
+-------------+------------------------+
| transformer | 'PowerLaw(slope=-1.0)' |
+-------------+------------------------+
| emitter | 'stellar' |
+-------------+------------------------+
+--------------------------------------+
| MODEL: ATTENUATED_TAUV_1.0 |
+-------------+------------------------+
| Attribute | Value |
+-------------+------------------------+
| tau_v | 1.00 |
+-------------+------------------------+
| slope | -1.00e+00 |
+-------------+------------------------+
| apply_to | 'reprocessed' |
+-------------+------------------------+
| transformer | 'PowerLaw(slope=-1.0)' |
+-------------+------------------------+
| emitter | 'stellar' |
+-------------+------------------------+
